LSD'S What they look like and axle view
Topic Started: Jul 29 2009, 08:40 AM (1,733 Views)
AceSniper
Member Avatar
Global Moderator

(More pics to come)

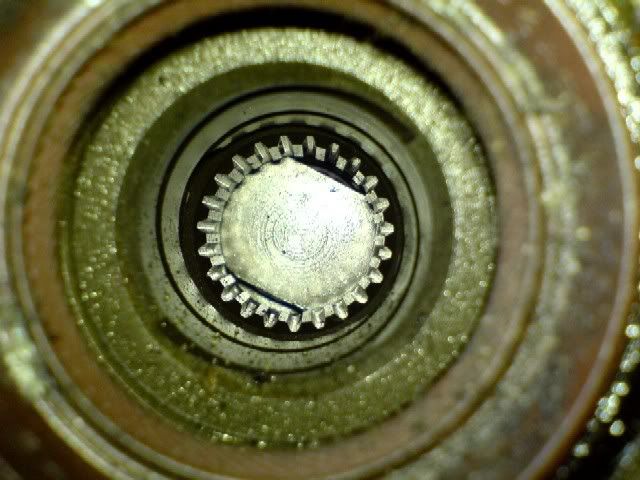

STD Open
Posted Image
Posted Image


STD c56/c160 helical
Posted Image
Posted Image
(note broken teeth from 6speed)



TRD Mechanical clutch plate
Posted Image




Kazz Mechanical Clutch pate
Posted Image
Posted Image
Edited by AceSniper, Jan 8 2010, 05:48 AM.
Offline Profile Quote Post Goto Top

markg-h2o
Member Avatar
Stage 5
im amazed by the amount of damage on the teeth from the 6 speed
is this one u were using your self ace? or what sort of milage/torture was it subject to?
thanks 4 the pics
Offline Profile Quote Post Goto Top

Levin BZR
Member Avatar


I had the same problem with my 6 speed gearbox.. (broken teeth)
Offline Profile Quote Post Goto Top

AceSniper
Member Avatar
Global Moderator

nah it was on a std blacktop normal street driving heavy clutch I think
Offline Profile Quote Post Goto Top

chinozie
Member Avatar
Stage 2
AceSniper
Jul 29 2009, 08:40 AM
STD c56/c160 Torsen
Posted Image
Posted Image
(note broken teeth from 6speed)

AceSniper - Good day...just a bit curios regarding the C56/C160 Torsen part...

Was it supposed to fall under Viscous LSD ? not Torsen ? Correct me if i'm wrong ?

Because i'm using one from C56, and put it C52...
here's the photo of it...

Posted Image
Offline Profile Quote Post Goto Top

Z33kdud3
Stage 6
what makes your lsd teeth get grind like that? rough launching?
Offline Profile Quote Post Goto Top

AceSniper
Member Avatar
Global Moderator

no 4age's came with Viscous lsd... they are fluid based ae101 gze came with them in a E series box and 4efte starlets come with them in c52/c56 but the housings differ and cant be put onto a 4age.

The teeth get munched like that when your 6speed fails.... mix of things can cause it, just that gear is narrower than a 5speed so weaker.
Offline Profile Quote Post Goto Top

AceSniper
Member Avatar
Global Moderator

they are helical lsd's

look it up on google should find something... there torque sensing if one wheel comes off the ground though theirs no lsd action
Offline Profile Quote Post Goto Top

Z33kdud3
Stage 6
hey sup everyone, i had ask this questiion before but did not get any answers.

question is, is it worth upgrading your lsd? what exactly it improves? does it makes a big improvement?
Offline Profile Quote Post Goto Top

Z33kdud3
Stage 6
Z33kdud3
Feb 4 2010, 01:06 PM
hey sup everyone, i had ask this questiion before but did not get any answers.

question is, is it worth upgrading your lsd? what exactly it improves? does it makes a big improvement?
anyone?? ^o)
Offline Profile Quote Post Goto Top

Cheensbo
Member Avatar
'88 Carina II
depends on if you have one already or not.. and what type of lsd you put in...
and what you use your car for, eg daily driver, drag racer, track car etc...

a lsd puts power to both drive wheels which improves grip in a straight line, reduces understeer in corners and if the diff works on decelleration it will steady the car on breaking and entry to a corner, it allows you to get the arse of the car to go out a little bit rather than understeer.
Offline Profile Quote Post Goto Top

Z33kdud3
Stage 6
Cheensbo
Feb 7 2010, 06:34 PM
depends on if you have one already or not.. and what type of lsd you put in...
and what you use your car for, eg daily driver, drag racer, track car etc...

a lsd puts power to both drive wheels which improves grip in a straight line, reduces understeer in corners and if the diff works on decelleration it will steady the car on breaking and entry to a corner, it allows you to get the arse of the car to go out a little bit rather than understeer.
thanks for that explanation, i was thinking replace the factory lsd and go for the trd type and see what difference i get in performance
Offline Profile Quote Post Goto Top

Cheensbo
Member Avatar
'88 Carina II
im no expert on lsd's so any corrections to what i said are welcome!!

well if you have one already i don't think you'd really have any need for a trd one, it wont make the car any faster as such. just more controllable in hard cornering... they're expensive and there's a bit of work in fitting one so personally wouldn't bother unless shes a full blown track car.. that's just my opinion..
Offline Profile Quote Post Goto Top

DreadAngel
Member Avatar
Han Lue
Actually, you find that sometimes in some situation it will in fact make your understeer more pronounce. LSD doesn't always fight off understeer just like swaybars, if you go the wrong type/size you'll create a stronger sense of understeer.

Depending on speed, type of LSD (helical, mechanical 1-way, mechanical 1.5-way, mechanical 2.0-way) they all act differently in some situations.

Z33kdud3 - Read around manufacturers as they provide lots of information, its better than us telling you - http://www.tomei-p.co.jp/_2003web-catalogue/efr_set-from_top-menu/efr_index_t-trax-ad_rset_2.htm

Thats just one of the many manufacturers ;)

Happy hunting!
Offline Profile Quote Post Goto Top

Z33kdud3
Stage 6
ok cool thanks for the info guys i will do sme research
Offline Profile Quote Post Goto Top

AceSniper
Member Avatar
Global Moderator

a plate lsd will give you the joys of a "locked" diff at slow speed... so heaps of fun in car parks.... But I do like them over the std item due to the pre-load and both wheels are doing the same speed were as std swap around a little causing torque steer
Offline Profile Quote Post Goto Top

Z33kdud3
Stage 6
AceSniper
Feb 11 2010, 05:13 AM
a plate lsd will give you the joys of a "locked" diff at slow speed... so heaps of fun in car parks.... But I do like them over the std item due to the pre-load and both wheels are doing the same speed were as std swap around a little causing torque steer
thats wut i hate with our stock lsd's my driveway is kinda funny where you find one side of the car lifts up while the other side is on the ground then the wheel starts to spin which is something bad for the gearbox right?
Offline Profile Quote Post Goto Top

toyorism
Stage 1
hey guys, i hv a question...
is it possible the final drive frm c56 on 4age 16v match with my c160?
i m looking for a higher ratio of final drive...
Offline Profile Quote Post Goto Top
