Modifying/removing the stock trumpets
Topic Started: Feb 12 2008, 05:40 AM (1,982 Views)
JDM
Member Avatar
AE111
its all about the bellmouth :D

Posted Image
Offline Profile Quote Post Goto Top

Bryan BZ-R
Member Avatar
Stage 6
I dont the trumpets at the weekend there with the modified bell ends but for some dum reason my computer wont upload the pics :@ :wall: there turned out ok, there about 70mm in lenght an i bonded them with that black bonding agent.....
Offline Profile Quote Post Goto Top

Bryan BZ-R
Member Avatar
Stage 6

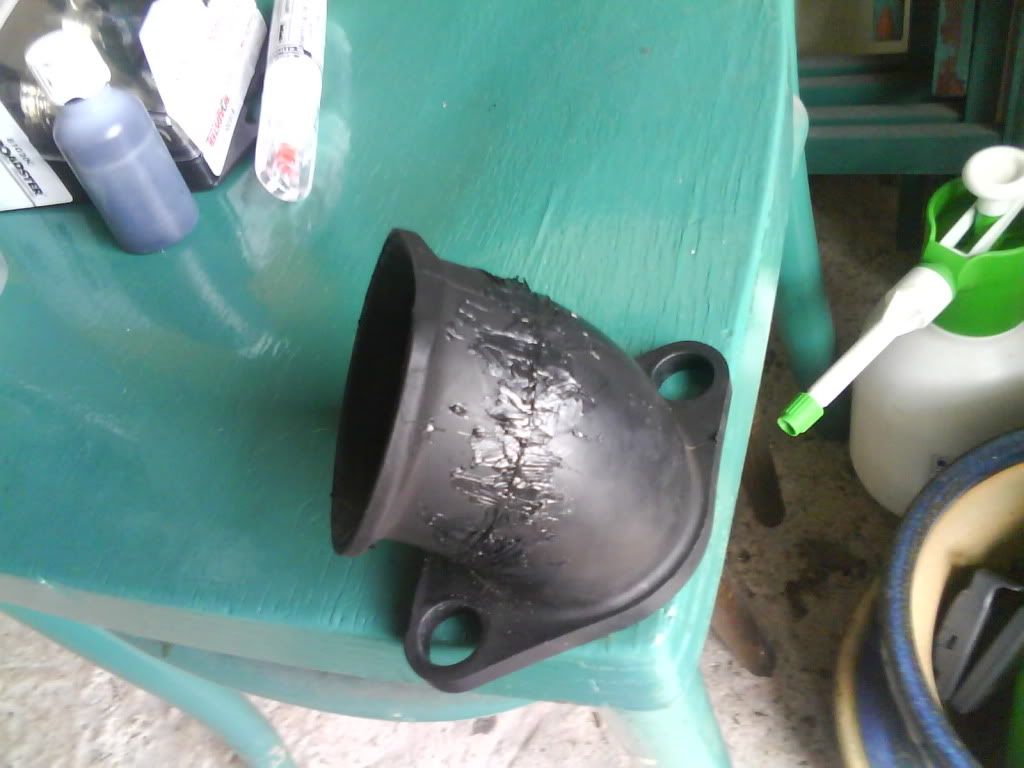

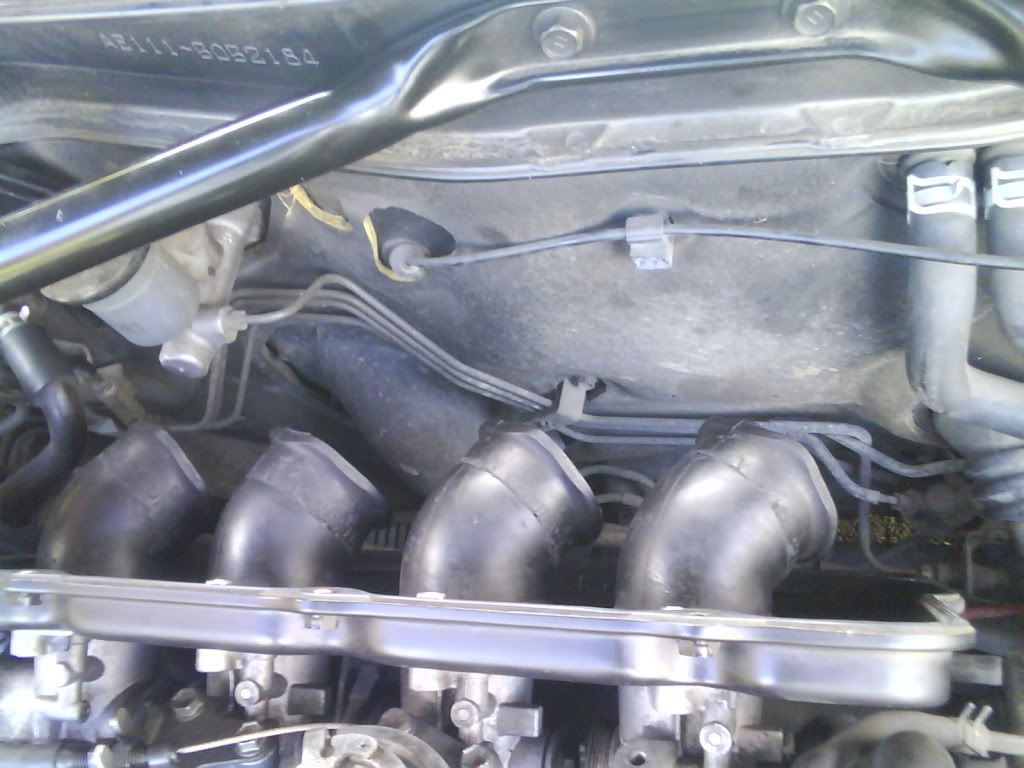

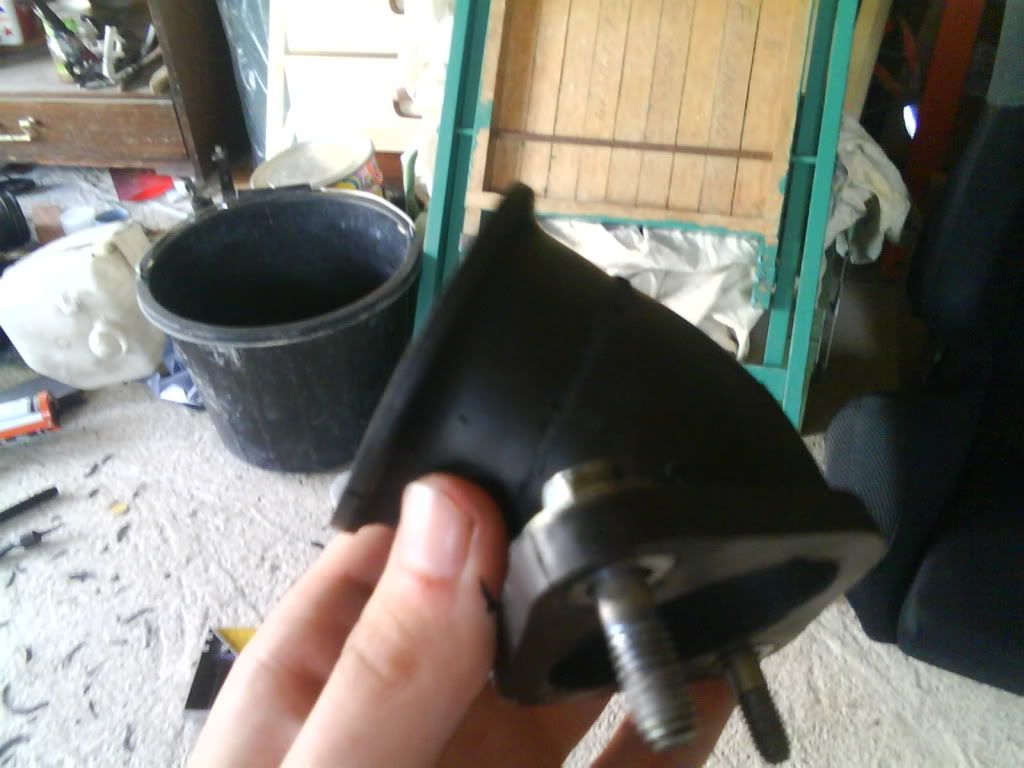

Right i got sorted with photos of the trumpets through the process i just shortened them and i tink it will work well...heres the pics

http://i908.photobucket.com/albums/ac282/Bryan91_2009/Photo0080.jpg
http://i908.photobucket.com/albums/ac282/Bryan91_2009/Photo0084.jpg
http://i908.photobucket.com/albums/ac282/Bryan91_2009/Photo0086.jpg
http://i908.photobucket.com/albums/ac282/Bryan91_2009/Photo0087.jpg
Offline Profile Quote Post Goto Top

Bryan BZ-R
Member Avatar
Stage 6
Right i got sorted with photos of the trumpets through the process i just shortened them and i tink it will work well...heres the pics

Posted Image
Posted Image
Posted Image
Posted Image
Offline Profile Quote Post Goto Top

Bryan BZ-R
Member Avatar
Stage 6
So wat yous think ^^^^
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
have you any dyno results?
Offline Profile Quote Post Goto Top

Bryan BZ-R
Member Avatar
Stage 6
nope
Offline Profile Quote Post Goto Top

TheHeroZero
Member Avatar
Stage 3
Sooooo is having longer trumpets or shorter trumpets going to increase torque and hp??? =P
Offline Profile Quote Post Goto Top

Deleted User
Deleted User

Longer increases torque, shorter power. It's all relative though, too short and you'd need to be revving really high to make power. I think they'd be dependant on the cams you are running really. No point with short rams and standard cams if the peak is above the redline.
Quote Post Goto Top

touge_trueno
Member Avatar
Stage 5
Escy
Aug 2 2010, 04:32 PM
Longer increases torque, shorter power. It's all relative though, too short and you'd need to be revving really high to make power. I think they'd be dependant on the cams you are running really. No point with short rams and standard cams if the peak is above the redline.
^^ not quite right. power is directly related to torque and so forth. look up wikipedia if you want the conversions.

short trumpet result in a higher peak in the power (hp/kw), and also puts a peak in the torque, which results in flow characteristic either side of the peak to either gain/lose torque. most likely lose as the flow of quad throttles and 20V's seems to be a pretty complex equation.
Offline Profile Quote Post Goto Top

TheHeroZero
Member Avatar
Stage 3
Yea cause I was going 2 purchase some Toda trumpets with retainer kits and they had 33mm, 63mm and 88mm =P our stock ones are 45mm soooo I was tinking, the optimum would be the 63mm ones.
Offline Profile Quote Post Goto Top

1i1
Member Avatar
NZ Toyota Parts Guy

No those will be the lengths not diameter.
Offline Profile Quote Post Goto Top

TheHeroZero
Member Avatar
Stage 3
That's what I said O.o
Offline Profile Quote Post Goto Top

TheHeroZero
Member Avatar
Stage 3
Oh, and do any of you Australians know if having aftermarket trumpets is illegal???
Offline Profile Quote Post Goto Top
