unknown muffler tuning company
Topic Started: Jul 26 2010, 12:07 PM (825 Views)
mike ae111
Member Avatar
new ae111 coming soon
i bought a catback for the levin yesterday believing it was a kakimoto so i looked up which model it was but the pics that they show are different to what i have i looked at apexi 5zigen hks greddy etc but the one i have doesnt match any so i looked up the code on the jasma stamp 051 and found the list bof companys adn 051 matched is Etching k s Inc has anyone heard of it?
Offline Profile Quote Post Goto Top

ozzy
Stage 4
The manifold of my car was made by these, well it had the same jasma code anyways. Sold it to a lad on here seemed live a very good quality piece
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
yeah its good quality bud i bought off you never heard of the company though
Offline Profile Quote Post Goto Top

ozzy
Stage 4
Oh ur the lad from yesterday? That has kakimoto stamped on it though? Even had a kakimoto backbumper protector on the car
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
i dont see a kakimoto stamp on it just a jasma stamp bud
Offline Profile Quote Post Goto Top

BZR4AGE
Member Avatar
JDM TODA
K's racing?
a minor JDM tuning company, but doubt they would have a website (and not sure if they are actually still around)...don't get confuse with K-sport , which makes suspensions in taiwan.
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
do you know were i can find any info on them
Offline Profile Quote Post Goto Top

BZR4AGE
Member Avatar
JDM TODA
your best bet is an old copy of hyper rev magazine from japan, but then again it wouldn't tell you much. It would probably only be in the available parts list, and all it tells you is the price, and a VERY short paragraph of it, so not worth the hassle really. If you want to know if its a good system or not, just take some pics of it, and surely most guys or here can give you an idea...take pictures of the welding spots etc etc, and the bends.
Offline Profile Quote Post Goto Top

robcam
Member Avatar
96BZR

Jasma ID 051 is エッチ・ケー・エス which is HKS. So the muffler will be an HKS post a pic of it and we can tell you which model it is.
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
its not the silent one and was at parrot's place today he said it looked like a hks cat back i dont have a camera at the moment but ill try get pics asap and it sounds savage way more power and torque over the trd
Offline Profile Quote Post Goto Top

The Parrot


that was quick getting back ha. any luck getting though to dave?
well i would say its made a hugh diffrence over nothing as well ha.
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
no still no answer from i think it is a hks i found this on youtube look identical to mine sound simaler too
http://www.youtube.com/watch?v=OLI6hLugIvU
Offline Profile Quote Post Goto Top

ozzy
Stage 4
mike ae111
Jul 27 2010, 12:35 PM
its not the silent one and was at parrot's place today he said it looked like a hks cat back i dont have a camera at the moment but ill try get pics asap and it sounds savage way more power and torque over the trd
Well thats good anyways. Sorry man i thought it was a kakimoto, said in the ad for the car it was and had the back bumper sticker and could of sworn i saw it stamped on it aswell. If its good quality, sounds nice and has given a power increase ya cant go wrong! The car it came of was a track car on it and was covered in very expensive top quality performance parts so id say its a good one alright
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
no worries man im delighted with it got a new decat just now so ill fit that when the hole lot cools down
Offline Profile Quote Post Goto Top

The Parrot


ha. the joys of it all.
Offline Profile Quote Post Goto Top

rob twincam 20v
Stage 5
i also have an exhaust with the same jasma id number 051 which is comeing up as etching k s inc. the inside of it has no muffler its just a hollow can and the are no signs of it having been cut to remove the inner liner is that the way yours is mike ae111. this is a pic of my one.
http://i817.photobucket.com/albums/zz94/robertmartina/Roberts%20car%20exhaust%2010/DSC01291.jpg
http://i817.photobucket.com/albums/zz94/robertmartina/Roberts%20car%20exhaust%2010/DSC01294-1.jpg
http://i817.photobucket.com/albums/zz94/robertmartina/Roberts%20car%20exhaust%2010/DSC01290.jpg
http://i817.photobucket.com/albums/zz94/robertmartina/Roberts%20car%20exhaust%2010/DSC01292-1.jpg
Edited by rob twincam 20v, Jul 27 2010, 11:07 PM.
Offline Profile Quote Post Goto Top

ozzy
Stage 4
rob twincam 20v
Jul 27 2010, 10:58 PM
i also have an exhaust with the same jasma id number 051 which is comeing up as etching k s inc. the inside of it has no muffler its just a hollow can and the are no signs of it having been cut to remove the inner liner is that the way yours is mike ae111. this is a pic of my one.
http://i817.photobucket.com/albums/zz94/robertmartina/Roberts%20car%20exhaust%2010/DSC01291.jpg
http://i817.photobucket.com/albums/zz94/robertmartina/Roberts%20car%20exhaust%2010/DSC01294-1.jpg
http://i817.photobucket.com/albums/zz94/robertmartina/Roberts%20car%20exhaust%2010/DSC01290.jpg
http://i817.photobucket.com/albums/zz94/robertmartina/Roberts%20car%20exhaust%2010/DSC01292-1.jpg
Ye its the exact same as that except the silencer on the cat end of it has been cut out and a straight pipe welded in. Pretty sure there was baffles in the backbox though
Offline Profile Quote Post Goto Top

robcam
Member Avatar
96BZR

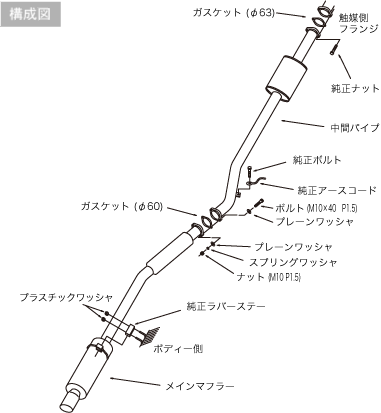

The exhaust is An HKS Silent High power. The part Number is
JASMA 03S00569
32016-AT009.

HKS Website Link


JASMA Number03S00569

VehicleLEVIN, TRUENO
ModelE-,GF-AE111
Engine4A-GE
Model Year95/05-00/07
Shape of mufflerHP( silent Hi-Power TYPE-H)
Main material S304(*2)
Diameter of tip94
Diameter of center pipe60(*3)
Close noise level Stock94
HKS94
About road clearance(*4) Clearance125mm
Portion of the kitMain resonator
Remarks

Posted Image

Offline Profile Quote Post Goto Top

rob twincam 20v
Stage 5
so the one i have is the older modle as the newer ones have the lettering stamped onto the exhaust tip
Offline Profile Quote Post Goto Top

robcam
Member Avatar
96BZR

rob twincam 20v
Jul 28 2010, 07:58 AM
so the one i have is the older modle as the newer ones have the lettering stamped onto the exhaust tip
yes. :)
Offline Profile Quote Post Goto Top

frax
Member Avatar
Stage 6
yep defo the hks silent high power. only had to look at the first pic =)
Savage cat-back. one of the best mods on my ae111. sound is perfect too. now i just need a high flow cat....
Offline Profile Quote Post Goto Top

JASE
Member Avatar
Stage 6

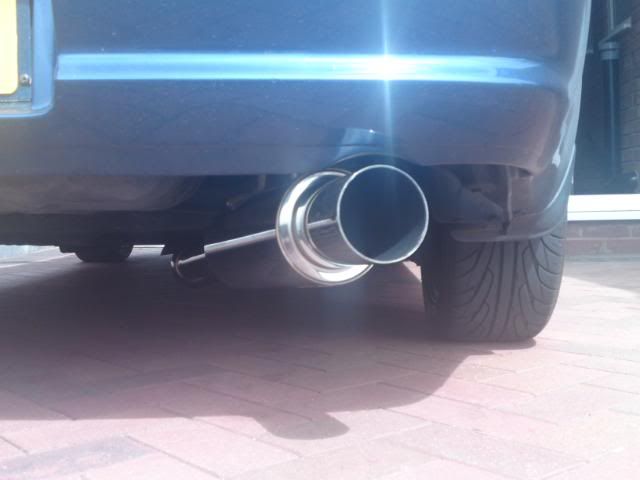

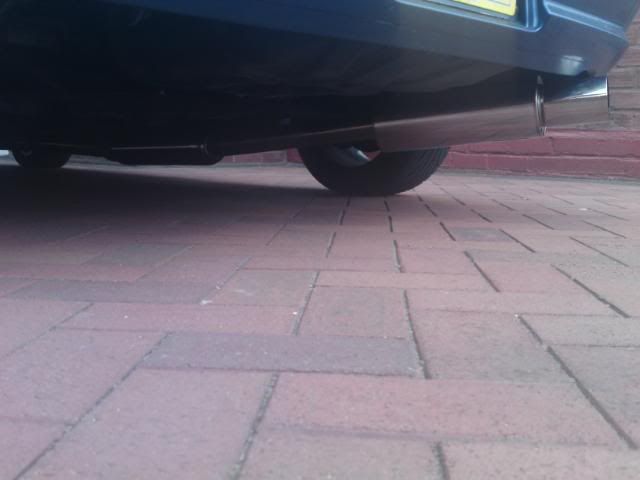

this is HKS Hi power silent

Posted Image

Posted Image :thumbsup:
Offline Profile Quote Post Goto Top

frax
Member Avatar
Stage 6
wish mine looked that good. Everything about your car is clean and shiny. do you actually drive it :P
Edited by frax, Jul 28 2010, 10:26 AM.
Offline Profile Quote Post Goto Top

antob26
Member Avatar
Stage 3
HA I think its time to change the title of this thread to "very well known muffler tuning company"
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
yep thats it guys thanks for the help looks like the first muffler was cut out all right yay ive a hks exhaust
Offline Profile Quote Post Goto Top

Kaiser
Member Avatar
Stage 5
How are you finding it?
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
the trd hasnt got a patch on it theres more mid range torque and power up top it gust pullls and pulls
Edited by mike ae111, Jul 28 2010, 03:41 PM.
Offline Profile Quote Post Goto Top

SileightY
Member Avatar
... It's so cool ! ...
i think its the non silent hi-power HKS..
Offline Profile Quote Post Goto Top

DreadAngel
Member Avatar
Han Lue
TRD Catback is similar to stock tbh, its more of a dressup item than a performance one.
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
its the exact same as the standard one just a different backbox
Offline Profile Quote Post Goto Top

ozzy
Stage 4
Damn so does that mean that manifold i had was a hks one aswell? It had the same jasma code. I sold it to cheap if it was haha
Offline Profile Quote Post Goto Top

SileightY
Member Avatar
... It's so cool ! ...
hmm the headers, should say HKS in the centre, in the middle of the 4 pipes.
Offline Profile Quote Post Goto Top

mike ae111
Member Avatar
new ae111 coming soon
id say so bud
Offline Profile Quote Post Goto Top

ozzy
Stage 4
SileightY
Jul 29 2010, 12:22 AM
hmm the headers, should say HKS in the centre, in the middle of the 4 pipes.
Thats all it had on it.
Posted Image
Jasma code was 051
Offline Profile Quote Post Goto Top

The Parrot


when i saw them i thougth they looked like the hks 4-2-1
