| Changing PFL headlight to FL; Possible? | |
|---|---|
| Tweet Topic Started: Aug 25 2010, 02:11 AM (255 Views) | |
| TheHeroZero | Aug 25 2010, 02:11 AM Post #1 |
![]()
Stage 3
|
Hey guys, any1 install FL headlights on their PFL Levin??? I was thinking about getting blackhousing ones for mine hehe =P |
![]() |
|
| frax | Aug 25 2010, 04:31 AM Post #2 |
|
Stage 6
|

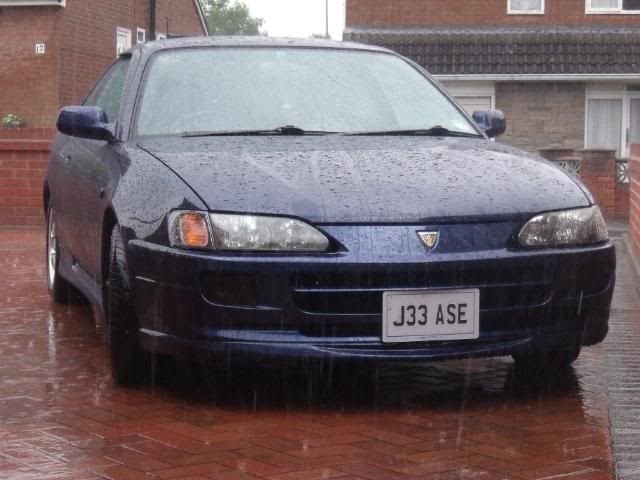

![]() courtesy of Jase Edited by frax, Aug 25 2010, 04:32 AM.
|
![]() |
|
| Ikenty | Aug 25 2010, 04:35 AM Post #3 |
|
BZ Touring Carib
|
you need to get the wire harness now. PFL use H4 bulbd and FL use HB4 and another bulb. |
![]() |
|
| TheHeroZero | Aug 25 2010, 06:24 AM Post #4 |
![]()
Stage 3
|
Ah cool, yea I suspected the wires and plugs will be different. |
![]() |
|
| Ikenty | Aug 25 2010, 08:10 AM Post #5 |
|
BZ Touring Carib
|
I had PFL lights on friends FL levin but we could only get bright. The H4 has two positive and one ground so get the wires and test to see which live is for High and which is for Low and you should be good from there as the ground can be connected. H4 pinout Wiring diagram here from Subaru forum. http://www.google.com/imgres?imgurl=http://i267.photobucket.com/albums/ii287/bac52/H4_Pinout-3.jpg&imgrefurl=http://www.subaruforester.org/vbulletin/f85/wiring-harness-r-d-48462/&usg=__IJmRkhUUCra-hNPGigIN4IKsNbU=&h=480&w=640&sz=81&hl=en&start=4&zoom=1&tbnid=xNGdMM3M1GZBSM:&tbnh=103&tbnw=137&prev=/images%3Fq%3Dh4%2Bbulb%2Bwiring%26um%3D1%26hl%3Den%26sa%3DN%26tbs%3Disch:1&um=1&itbs=1 Not sure how HB4 and HB3 wires are run but I can check the BZR when I leave work this morning to see what his setup is. I wish I could change my headlights to doubles but the Corolla and Carib only have one style of light. |
![]() |
|
| n2o | Aug 25 2010, 08:17 AM Post #6 |
|
mechanical n00b
|
a little searching in the right threads can yield amazing results ! further questions should be posted there. http://s15.zetaboards.com/AE111_Forum/topic/6535468/1/?x=20#new Edited by n2o, Aug 25 2010, 08:18 AM.
|
![]() |
|
