New CAI system
Topic Started: Mar 5 2011, 09:11 PM (499 Views)
AE111_JAMES
Member Avatar
Stage 6

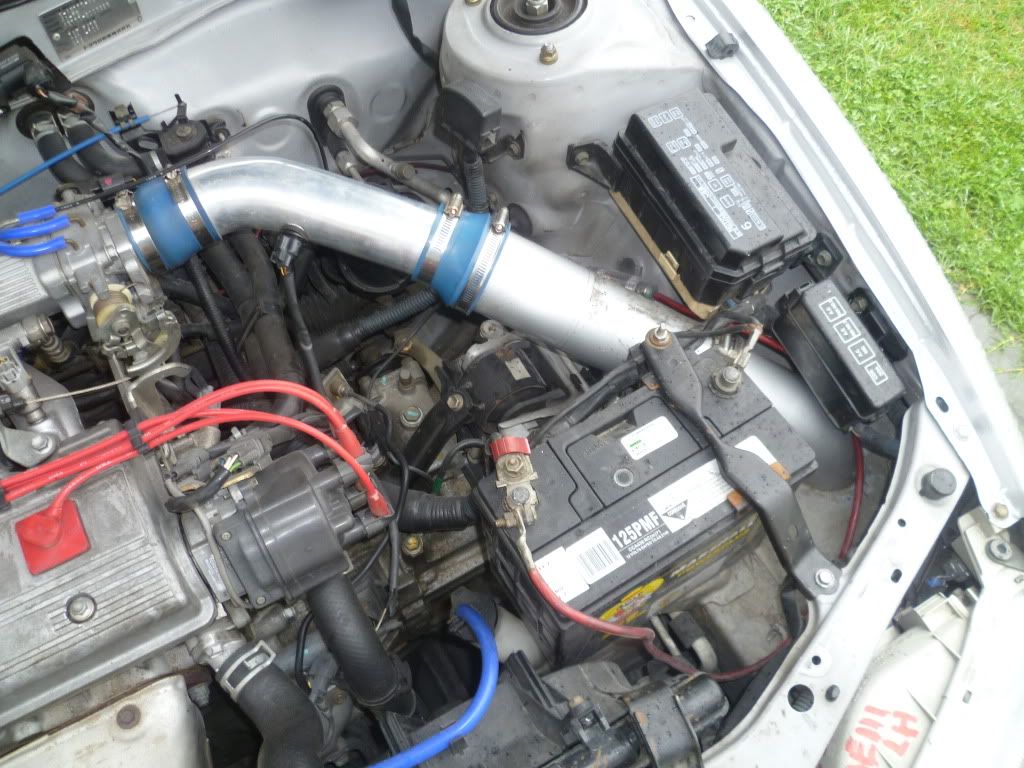

Recently obtained some aluminium piping from my work (for free) :P

and decided to make up a extended cold air intake to what I originally had, having the pod filter taking in air from just behind the bumper fog light piece.

Posted Image

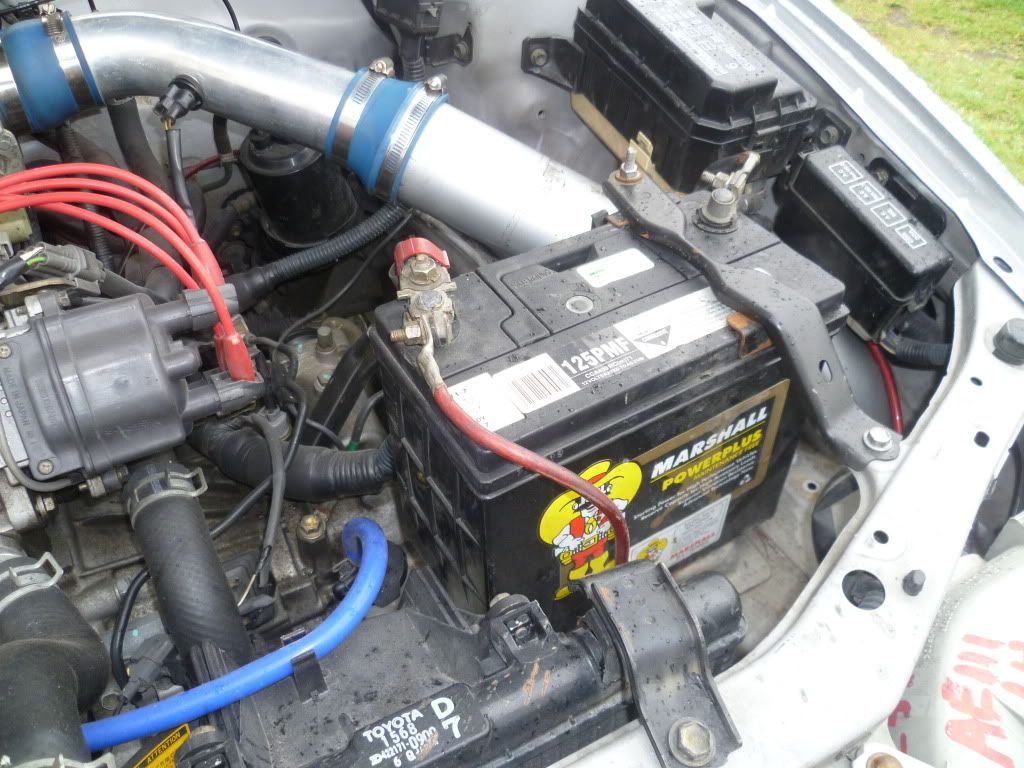

was a bit harder to do than others would have experienced as my battery is larger and my pod filter is the inversed cone type so it tended to push out the guard liner toward the wheel which I wasn't too confident about leaving it like that so decided to add an extra bend underneath the guard to point the filter more towards the front of the bumper and used the heat shield as a dirt/water guard to stop crap from splashing up onto the filter if that may happen. With the battery side of things was even more of a pain, had to shift the overflow tank over a bit to make way of the battery, but the down pipe fitted snug in the hole that took almost an hour to cut out with the die grinder fitting :P

Posted ImagePosted Image
Offline Profile Quote Post Goto Top

thegame-01
Stage 3
nice work mate. any pics of how it looks behind the bumper??
Offline Profile Quote Post Goto Top

AE111_JAMES
Member Avatar
Stage 6
Ill get some up a little later. Its raining here at them moment :(
Offline Profile Quote Post Goto Top

TRUENOSAM
Member Avatar
Stage 6
Bonus of having a small battery is that its not too much effort to run the pipe to the inner arch

Oh and nice sandals :P
Offline Profile Quote Post Goto Top

JASE
Member Avatar
Stage 6
:thumbsup: good work mate .looks good :thumbsup: will look even better with blacktop.

:yay:
Offline Profile Quote Post Goto Top

AE111_JAMES
Member Avatar
Stage 6

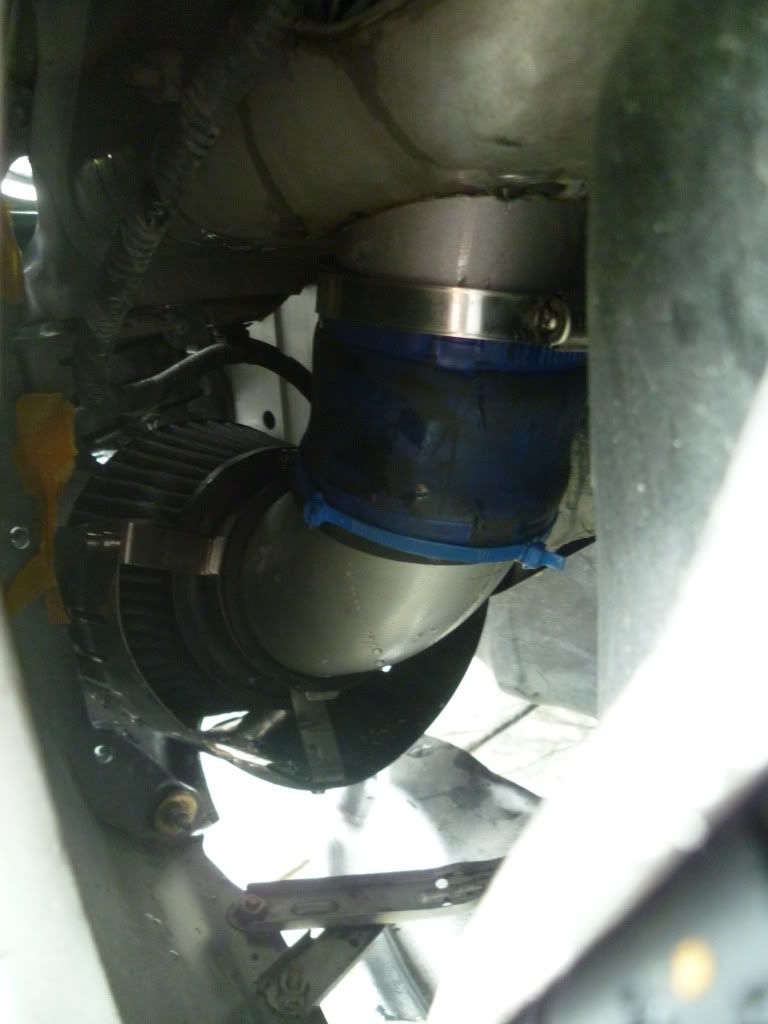

Posted Image

looks like it's slipping off but I had to mount it like that so it could curve round properly :P

PS. I ran out of joiner clamps so had to use dodgy zip ties haha.

oh yeah, but piece of mind that I am able to start the car easily every time lol
about the scandals i've had them from the start of high school hahaha.

definitely right there jase :D getting the bottom end re-balanced next wednesday so am looking forward till then, still having problems with finding the CORRECT engine loom as the one I got is definitely not off an AE111!!
pisses me off man but never mind will get there in the end.
Edited by AE111_JAMES, Mar 6 2011, 12:05 AM.
Offline Profile Quote Post Goto Top

JASE
Member Avatar
Stage 6
TRUENOSAM
Mar 5 2011, 11:14 PM

Oh and nice sandals :P
should be moved to the FAIL thread :rotfl: :rotfl: :rotfl:
Offline Profile Quote Post Goto Top

thegame-01
Stage 3
very nice dude. Thanks for the upload. Looks awsome btw
Offline Profile Quote Post Goto Top

AE111_JAMES
Member Avatar
Stage 6
hey my scandals are awesome :D oh and thank you man. the hardest part was just grinding the hole bigger and was a little fiddley getting that pod filter on but works and sounds GREAT!
Offline Profile Quote Post Goto Top

JASE
Member Avatar
Stage 6
glad your pleased with it , it does make a difference and prob one of the best designs to go with for cai........

yep drilling and filing the hole is awkard but looks like you got there

good work mate :thumbsup:

get that tie replaced as soon as with a metal clamp ;)
Offline Profile Quote Post Goto Top

AE111_JAMES
Member Avatar
Stage 6
Hell yes. major difference from my original setup. oh yeah that probably won't happen until the conversion now lol. things are looking up with it as well, sorted out the wiring issues as you may have seen
Offline Profile Quote Post Goto Top

JASE
Member Avatar
Stage 6
AE111_JAMES
Mar 6 2011, 11:02 PM
Hell yes. major difference from my original setup. oh yeah that probably won't happen until the conversion now lol. things are looking up with it as well, sorted out the wiring issues as you may have seen
sure have mate , enjoying the thread :thumbsup:
Offline Profile Quote Post Goto Top

1i1
Member Avatar
NZ Toyota Parts Guy

Haha awesome cable ties FTW B)
Offline Profile Quote Post Goto Top

AE111_JAMES
Member Avatar
Stage 6
1i1
Mar 6 2011, 11:50 PM
Haha awesome cable ties FTW B)
They are actually holding up quite well believe it or not :D
Offline Profile Quote Post Goto Top

johngtapex
Member Avatar
Ae101 life
That looks class james id love to something similar to my own.
Offline Profile Quote Post Goto Top

AE111_JAMES
Member Avatar
Stage 6
thank you man :) like i say it Give's a lot more power now so i'm happy about that haha. are you able to have a similar setup in an ae101?
Offline Profile Quote Post Goto Top
