Limit wont lift; HELP
Topic Started: May 24 2012, 02:54 PM (478 Views)
james1992
Stage 3
i fitted a apexi rsm and spliced the wires in with connectors and set it up.
all the reads are spot on but i cant get rid of the limit
in fourth gear i get to 202km and it hits the wall and wont get any higher even when i change to 5th
Could any please help me as it is driving me crazy!!!
Offline Profile Quote Post Goto Top

supernova-dw


It 100% Will be a wiring problem, there are two ways to wire in the RSM, one disables the speedo cut and one does not, check the wiring diagram/s on the Apexi site.
Offline Profile Quote Post Goto Top

james1992
Stage 3
i have it wired with the one with the loop in it to bypass the speed cut.
i had it up at auto tune which is a remap etc shop and they said its wired right for it to bypass it but they said the only thing i could to do is solder it in and see if that will make it work other than that they said its 100%
Edited by james1992, May 24 2012, 09:24 PM.
Offline Profile Quote Post Goto Top

1i1
Member Avatar
NZ Toyota Parts Guy

Silly question here - but was the speed limit set off on the RSM? Can't remember exactly how it's worded on the unit. But if you currently have it set as "OFF" try "ON" and see if that works.
Offline Profile Quote Post Goto Top

james1992
Stage 3
the speed cut is set to off and to set it on you pick a speed between 1-300km
also the speed watch is off
its soo annoying as i cant pull in 5th gear with out hitting the speed limit wall.
could it be the connections needing soldered rather than just connected with connector crimps?
Offline Profile Quote Post Goto Top

1i1
Member Avatar
NZ Toyota Parts Guy

Shouldn't be. It's got to be either the way its hooked up or a setting
Offline Profile Quote Post Goto Top

supernova-dw


As 1i1 said it will not be because of the connections! Mine are crimped in not soldered and it works fine. It will be a simple setting, do you have the owners manual?

P.S I wouldn't keep trying to do top speed runs by the way, sure fire way to screw something up big style!
Offline Profile Quote Post Goto Top

james1992
Stage 3
yea i have the manual and i haven went over very thing loads of times. it has to be the speed by pass wire as all the reads are perfect and every other setting works bar the speed cut :wall:
and its the only way i know of how to actually test it is to take it up to where the limit is to see if it cuts in.
Offline Profile Quote Post Goto Top

GNeve
Member Avatar
The flying Dutchman
Maybe its your ECU?

Do you run it with a M/T ECU or a A/T ECU?
Offline Profile Quote Post Goto Top

james1992
Stage 3
M/T ecu
is there any other factory items that may restrict it from passing the speed cut.
Offline Profile Quote Post Goto Top

taz-20v
Member Avatar
Stage 6
@ james this is a public forum be very carefull stating speeds in which you have or havnt done!!
As the lads said this will be a loose wire or faulty connection somewhere or maybe it might be a dodgey unit?
Offline Profile Quote Post Goto Top

james1992
Stage 3
all speeds have been tested on a rolling road as there is speed cameras everywhere.
but the unit has all the wires and the other functions work on the unit
going to take it out a rewire once there is spaces available again.
Offline Profile Quote Post Goto Top

silver_surfer111
Member Avatar
Special Stage
Are you sure of the following :

1. You wired it using diagram no : T5-a ?
2. You used option 2 (when cutting speed limiter) ?

You could have the pink and purple wires mixed up as in you may have it so the Pink wire is the input and purple is the out put this could also cause the car not to be delimited.

Is it a genuine Apexi RSM ? new or used?

Hope this helps.
Offline Profile Quote Post Goto Top

james1992
Stage 3
i used the t6 diagram i think but not 100% the one that has the same number of pins and spaces as the ecu and wired it in with the loop in it to bypass the limit as it says.
and it was taken from another levin and is a genuine apexi rsm everything else works on it perfectly all the reads are right
will have a look at the wires and what ecu diagram i used again
Offline Profile Quote Post Goto Top

silver_surfer111
Member Avatar
Special Stage

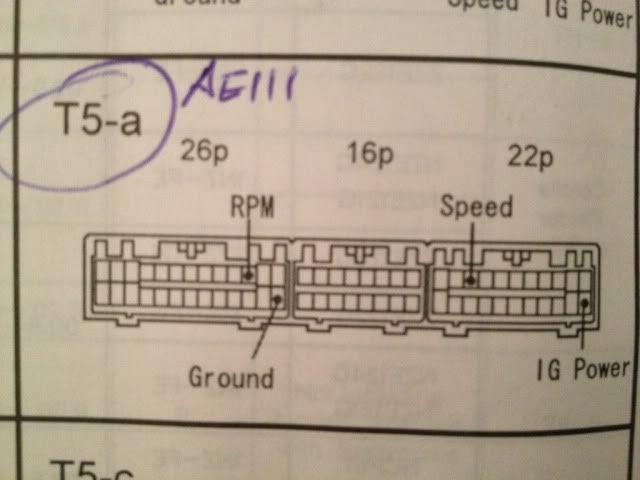

T6??...there be the problem matey if its wired to T6. It needs to be going to T5-a.

See picture below :

Posted Image

Hope this helps.
Offline Profile Quote Post Goto Top

Levin BZR
Member Avatar


^^^ What silver_surfer said! Check your wiring diagram again
Offline Profile Quote Post Goto Top

james1992
Stage 3
going check it this week,
only difference between my wiring and that diagram is i have wired the rev wire in to the crank terminal in the ecu to give the read for the revs.
i think in that diagram above the rev wire is going in to the igniter?
Offline Profile Quote Post Goto Top

james1992
Stage 3
Check wiring diagram over and over again and it turns out its wired right so i think there might be a fault in the rsm so goin consider purchasing the HKS speed defence limiter would any body have any info on it like is it any use, how hard is it to wire etc
Offline Profile Quote Post Goto Top

supernova-dw


If you simply want to de-limit the car then you don't need to buy anything like that. I de-limited mine with a cheapy thing from e-bay which cost about £5! Search on Ebay mate.
Offline Profile Quote Post Goto Top

james1992
Stage 3
Could you send me a link for it please
Offline Profile Quote Post Goto Top
