| small electrical connections problem | |
|---|---|
| Tweet Topic Started: Nov 17 2012, 06:59 PM (213 Views) | |
| D.Mullins | Nov 17 2012, 06:59 PM Post #1 |
|
Stage 4
|

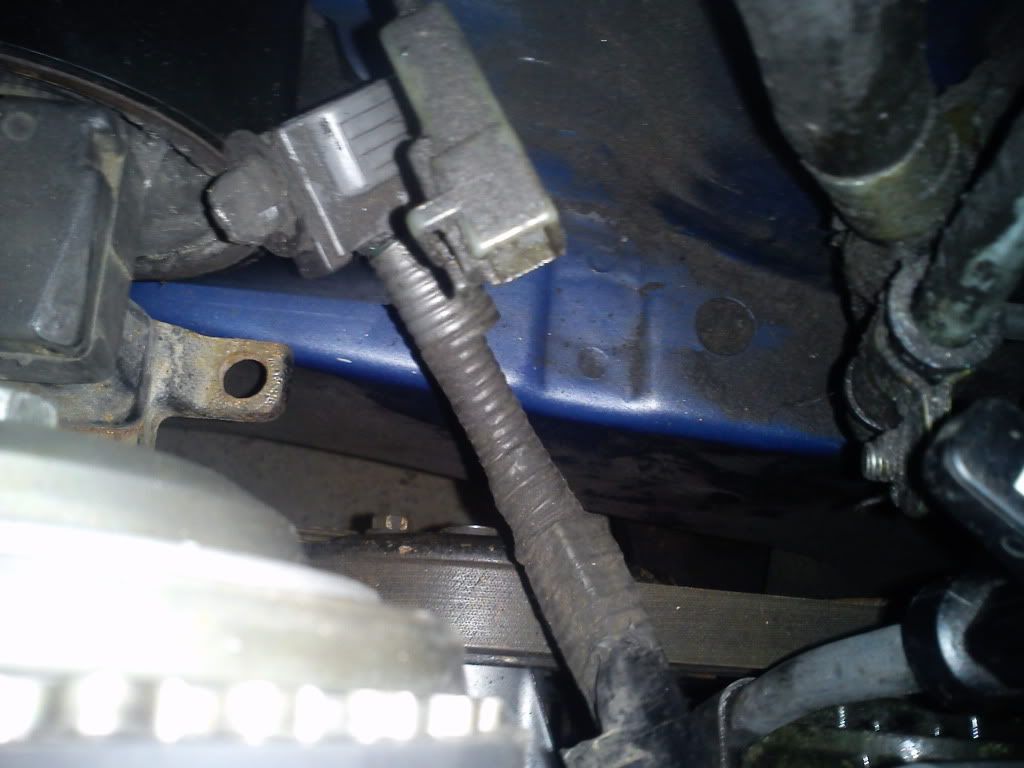

Right, im coming to the end of my build and its nearly time to start her up for the first time since april... Only problem now is there's a couple connectors there and i cant find the male half of the connector There's an earth cable on the alternator side, a female connector on the same side and i cant find there male counter part, here's a pic of them both ![]() Then there's one on the gearbox side right below the ignition, forgot to take a pic of this one but its grey in color... If someone on here could just go have a look for me as to where they connect up it would be greatly appreciated! Cheers |
![]() |
|
| The Parrot | Nov 17 2012, 09:31 PM Post #2 |
![]()
|
The left one is your O2 sensor I think. Ill take a look tomorow and let you know |
![]() |
|
| AE111_JAMES | Nov 18 2012, 05:23 AM Post #3 |
|
Stage 6
|
+1 to that ^^ and if the one above the gearbox is a two pin plug its your reverse switch plug |
![]() |
|
| D.Mullins | Nov 18 2012, 03:02 PM Post #4 |
|
Stage 4
|
ha, O2 sensor so in the wrong place completely! Don't think the one over the gearbox is two pin at all, its a fairly chunky one and i think its a 3 or 4 pin plug but not completely positive on it... |
![]() |
|
| AE111_JAMES | Nov 19 2012, 09:19 PM Post #5 |
|
Stage 6
|
that definitely looks like the o2 sensor plug, it has the same protective sheething and clip that slots into the subframe. probably best to get a photo of the one above the gearbox |
![]() |
|
| D.Mullins | Nov 20 2012, 11:18 PM Post #6 |
|
Stage 4
|

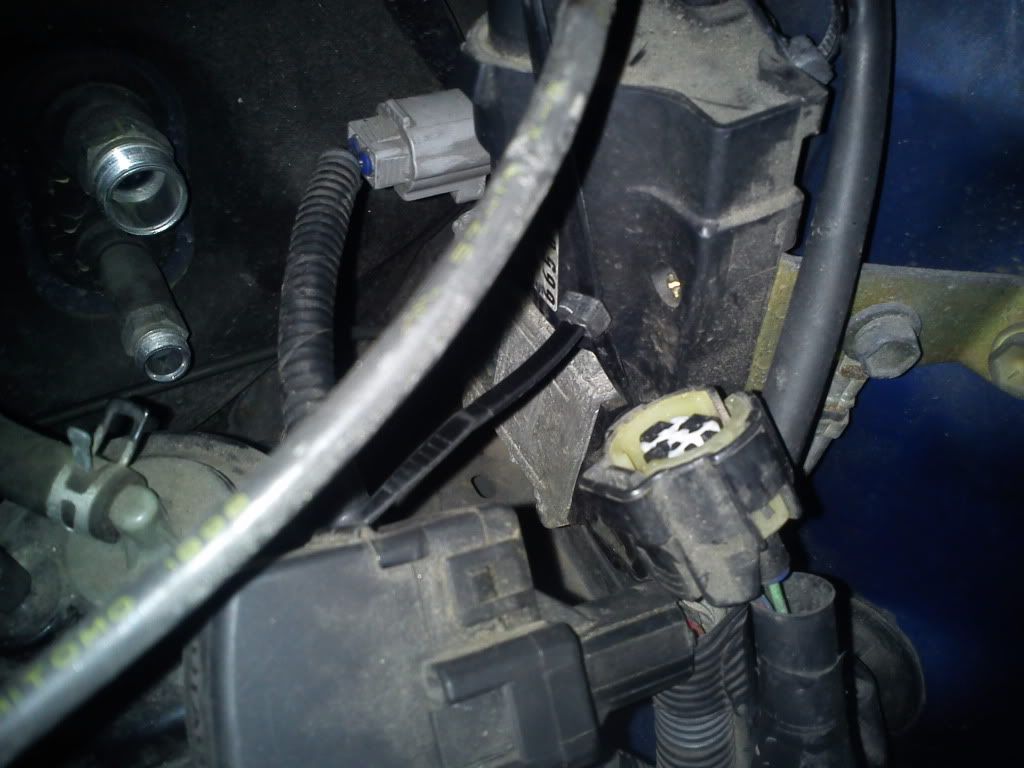

![]() This is the one im on about over by the gearbox.... Something to do with the rad fan? seems to come on straight away like when key is in the ignition??? |
![]() |
|
| The Parrot | Nov 20 2012, 11:33 PM Post #7 |
![]()
|
air con sensor i think. that is what would make the fan come one. |
![]() |
|
| D.Mullins | Nov 20 2012, 11:49 PM Post #8 |
|
Stage 4
|
Just found the air con thread there, so im hoping thats it cause she seems to be struggling for fuel on start up and idle is below 1k rpm when cold |
![]() |
|
