Dragon 1/35 Nashorn
Topic Started: Dec 13 2013, 01:43 PM (127 Views)
garywintin
Member Avatar
Filler and Sander
Hey guys.....

I just finished the Leopard2 and Mosquito said on my Leopard2 gallery that it would be nice if I share my wips on the forum ....

Hence, I have decided to work on my third dragon and second open-topped vehicle, beautiful vehicle known as the Nashorn.
This is the kit -
Posted Image

I would love to show the sprues but there are just so many in this case that it will become so long. But, I can tell you that this kit has - 1,103 parts (798 in grey styrene, 240 “Magic Track” links, 35 etched brass, 24 clear styrene, 2 springs, 2 coil springs, 1 length of wire, 1 turned aluminium gun barrel)
That really is a LOT of sprues. Most of them are not even for this kit. Usual dragon .. you know.. anyway
I started on the shock absorbers -
Posted Image

and the bogies -
Posted Image

Which was relatively easy, compared with my Dicker Max.
Followed that up with the first part of the front glacis plate; the hooks -
Posted Image

And then, there's the second part which is the visors and the hatch. The visors can be made workable but I looked at the instructions and having no intention of showing any interior nor to get frustrated over putting together some complicated stuffs , I just skipped all the steps and just closed the driver visors shut.
Posted Image

now if you are also building this kit - be aware of the following -
Posted Image

The four little hinges that I circled on the manual is not labelled and I had to spend a good deal of time trying to find them. They are actually on the F sprues. So if you are building this, be on the look out for this.
After that, I put on the rear plate on the hull tub -
Posted Image

and I glued on the glacis. A bit of patient and filling is required -
Posted Image

After that, I went back to the back plate again and put on the bibs and bobs as instructed. Naturally, I left the muffler off for now -
Posted Image

After that, I decided to put on the exhaust pipes that leads to the muffler. The kit is a 3-in-1 comprising of initial, initial-modified and early. I went for the initial-modified and put on the pipes on both side like so -
Posted Image
AS you can I have also put on the wheels and idler.

I then attached the little box that is associated with the initial-modified version which also have the mud-flap on it. Too bad I don't have any brass sheet lying around. I couldn't damage it as it was plastic. ''sob ''
You can also see the two ends of the exhaust pipes which will in turn go into the muffler later on -
Posted Image

After that, I finished up the front fenders. Much to my surprise, that was all there is on the front fenders-
Posted Image

Alright folks, I will leave this here for now.
I will keep you updated.

Until the next one.
Offline Profile Quote Post Goto Top

Olde Farte
Member Avatar
Lt. Derek 'Smurfy' Reeve
Hi Gary, it's always nice to see WIPs whatever the subject. This looks to be going together quite well.
Offline Profile Quote Post Goto Top

Cimmerian
Member Avatar
Lt. Ken 'Albatros' Jeffrey
Nice work.
Offline Profile Quote Post Goto Top

Mark M
Member Avatar
Hawk T1
well nice build ill be watching with interest
Online Profile Quote Post Goto Top

Mosquito
Member Avatar
Kit reviewer
Looking good mate, and thanks for the tip about the hinges. :cool
Offline Profile Quote Post Goto Top

tc2324
Member Avatar
LCDR Tony `Banana's` Clay
Lovely start. Looking forward to the next update. :cool
Offline Profile Quote Post Goto Top

garywintin
Member Avatar
Filler and Sander
Hey guys ... Got an update here ...

Last time, I left off at the fenders so lets continue from that.
I attached the fenders and put on the first base coat so that I can put on the Tracks ASAP -
Posted Image

After that, I painted the wheels, put up the tracks after that and painted them so that I can get it out of my way and concentrate on more stuffs -
Posted Image

Posted Image

After that, I started on the gun-
I honestly have no idea what this is called but this it the one that hold the barrel and goes into the cradle ( somebody please tell me what this is )
Posted Image

After that, the breech ( quite a lot of steps and parts just for that ) -
Posted Image

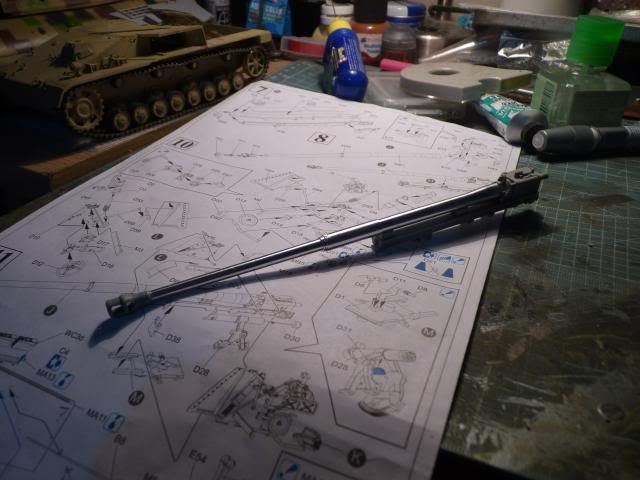

Followed up by the Muzzle brake -
Posted Image

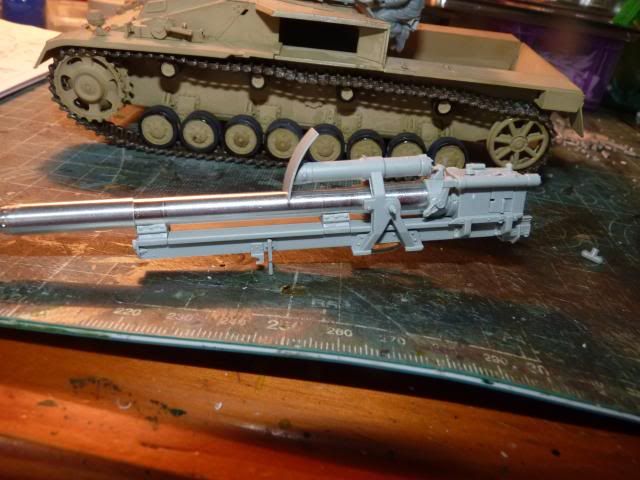

the whole thing -
Posted Image

I followed that up with a recoil cylinder -
Posted Image

Started building up the left armour-struts for the cradle -
Posted Image

and this is the right -
Posted Image

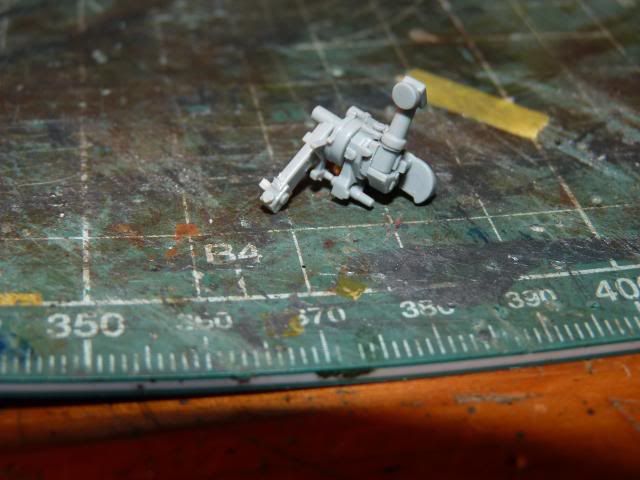

and this is the gun sight -
Posted Image

And if you are building this, becareful of this step on the left armour-strut
Posted Image

D20 is supposed to go into the little hole where it says D-14 and D-14 is actually supposed to go into the the half-circle slot above D-7. I learned about the mistake the hard way so if you guys are building this, be careful of this.

And I moved on to some small bibs-and-bobs on the inside of the sides of the super-structure -
Posted Image

Also, if you are building this, be mindful of this step as well -
Posted Image

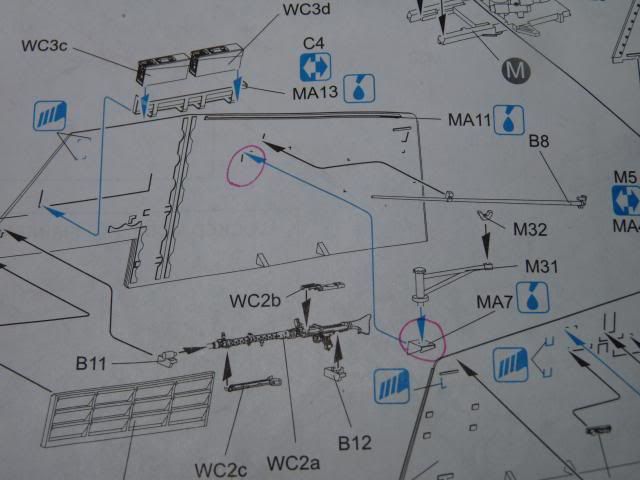

MA7 is a PE part and it's kinda situated very low and conflicting with M31 swing arc so you might want to move it up so that M31 can swing properly. But that's your choice.

And I will leave you guys at this step. I will keep you guys updated.
