Casting Parts
Topic Started: Apr 22 2013, 03:15 PM (153 Views)
madmonk
Member Avatar
Lt Warren "Satan" Monks
In the lull between kits, yes Mark and finishing the Hawk, I've been playing around with some casting.

I bought one of the Revell BSG Viper Mk VII kits and with the lighting I'm doing on the SW kits I wondered what I could do with this. Cockpit and engines are obvious but I then thought about the weapons. There are three points and it's just crying out for fibre optics but the kit parts are a bit too delicate for drilling out, tried it and am now a part down!!

So I thought about casting new parts with the fibre guide cast in. I made a mould using some 2 part stuff I had in, bought it from the Range some time back. For the fibre guide all I did was drill a small hoe in each end of the kit part then inserted a brass rod before making the mould.

for the casting I have used a 2 part plastic that is mixed 1:1, put the guide in then filled the mould and clothes pegged the two halve together.

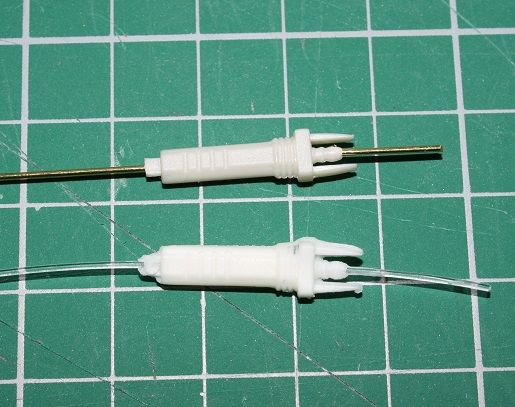

This was the result.

Posted Image

Needs a bit of a clean up but I think it looks good, the surface detail is clean and tidy and once it has hardened fully and painted the guide can be cut back and then fed into a LED and pulsed to mimic firing.

What do you think.

Cheers,

Warren
Offline Profile Quote Post Goto Top

Mark M
Member Avatar
Hawk T1
looks cool id be interested in the for some of my scifi builds
Offline Profile Quote Post Goto Top

madmonk
Member Avatar
Lt Warren "Satan" Monks
What sort of thing are you looking at Mark.

Cheers,

Warren
Offline Profile Quote Post Goto Top

Mosquito
Member Avatar
Kit reviewer
Well done mate. :cool
Offline Profile Quote Post Goto Top

Mark M
Member Avatar
Hawk T1
i have a bsg what if to do and a AMT? 2 ship tie fighter diorama to do for jamie, i can do basic electronices but need to look at fiber optics, hence ive been reallt interested in your recent stuff
Offline Profile Quote Post Goto Top

madmonk
Member Avatar
Lt Warren "Satan" Monks
No problem Mark, happy to pass on what I've learnt and help where I can.

Cheers,

Warren
Offline Profile Quote Post Goto Top
