RSAF LIghtning T.55; 1:48 Airfix + CMK Conv. & MA decals.
Topic Started: Jun 16 2016, 09:02 AM (397 Views)
DLG Dave
Lt Dave 'Wraith' Carter
Posted Image

Posted Image

Posted Image

Posted Image

No real need to go over the Airfix Lightning in 1:48 - just about everything which need to be said about it has already been done so many times over elsewhere. Using the CMK resincast conversion to produce the Saudi Trainer variant and the decals needed can be adapted from the MA sheet shown here. All decal sheets included are shown for completeness, but naturally most of it won't be used. If there's something there you need and I won't be using, let me know and you'll be welcome to them. (Other than the Saudi markings and stencils, there's nothing else here I will ever use).

Offline Profile Quote Post Goto Top

Olde Farte
Member Avatar
Lt. Derek 'Smurfy' Reeve
Nice one Dave and I will follow, avidly.
Offline Profile Quote Post Goto Top

mac1677
Member Avatar
Lt Mac 'Shocker' McSheffrey
This is going to be a cool build, looking forward to following :cool
Online Profile Quote Post Goto Top

DLG Dave
Lt Dave 'Wraith' Carter
Posted Image

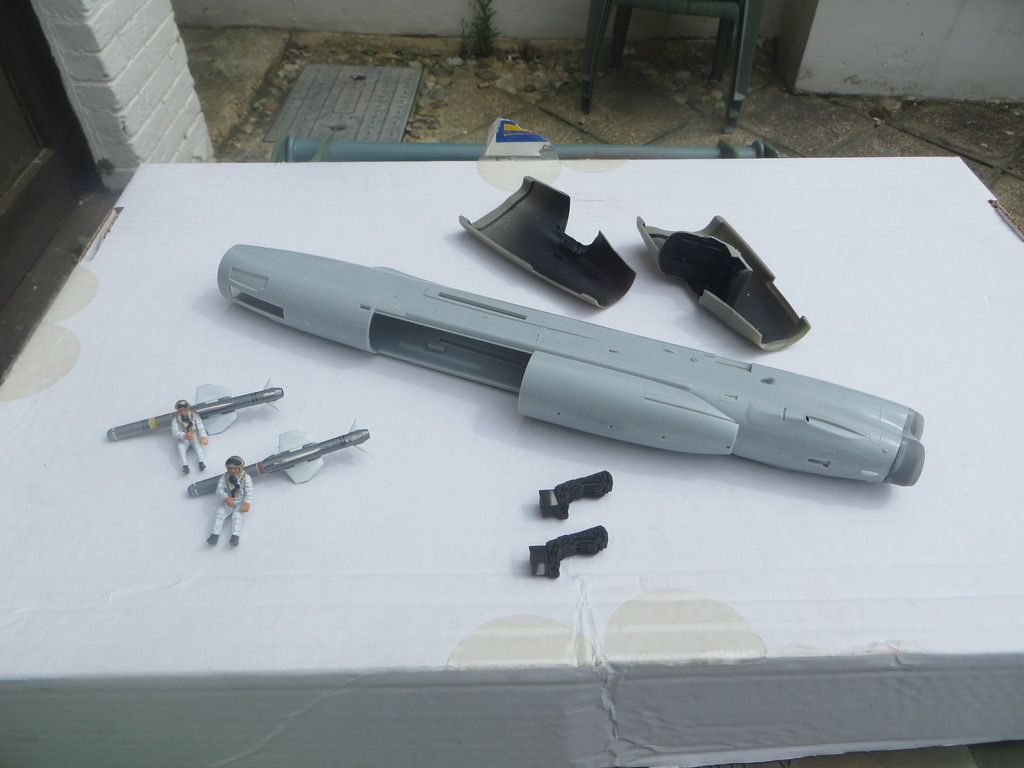

Tailpipes & afterburners secured in place and the nose removed for the conversion. Conversion nose parts are a little warped and it's not straightforward to join them to the fuselage. That being the case I'll have to cut out the vacform Canopy early to make certain it matches the proper width of the completed nose assembly - at present that's not necessarily a given.
Offline Profile Quote Post Goto Top

Mark M
Member Avatar
Hawk T1
:pop
Offline Profile Quote Post Goto Top

tc2324
Member Avatar
LCDR Tony `Banana's` Clay
:clap: :cool
Offline Profile Quote Post Goto Top

DLG Dave
Lt Dave 'Wraith' Carter
Posted Image

Posted Image

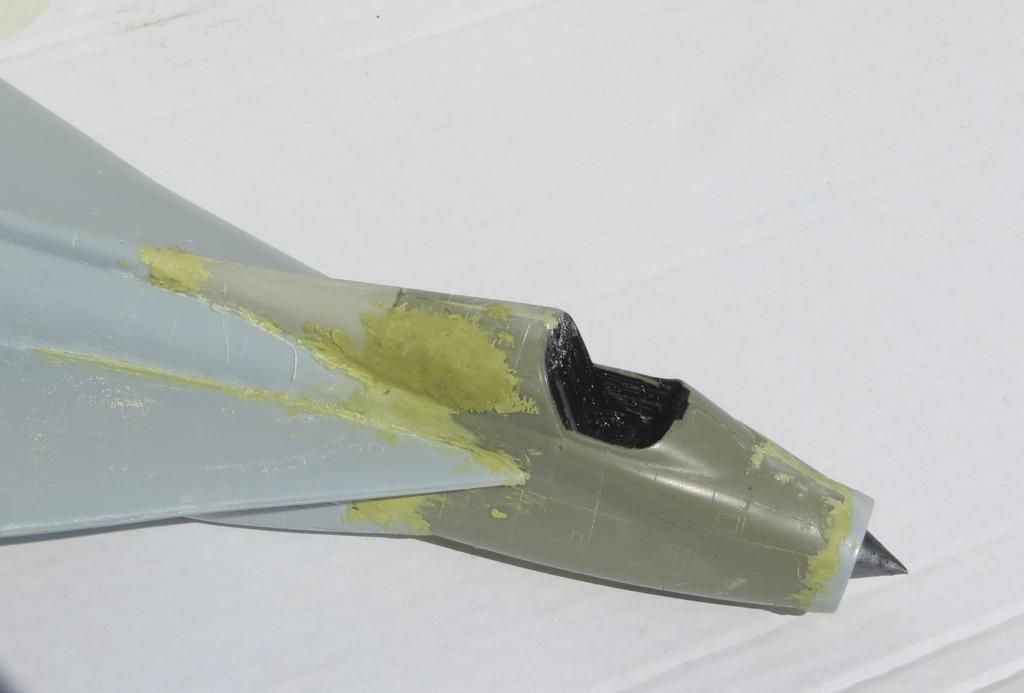

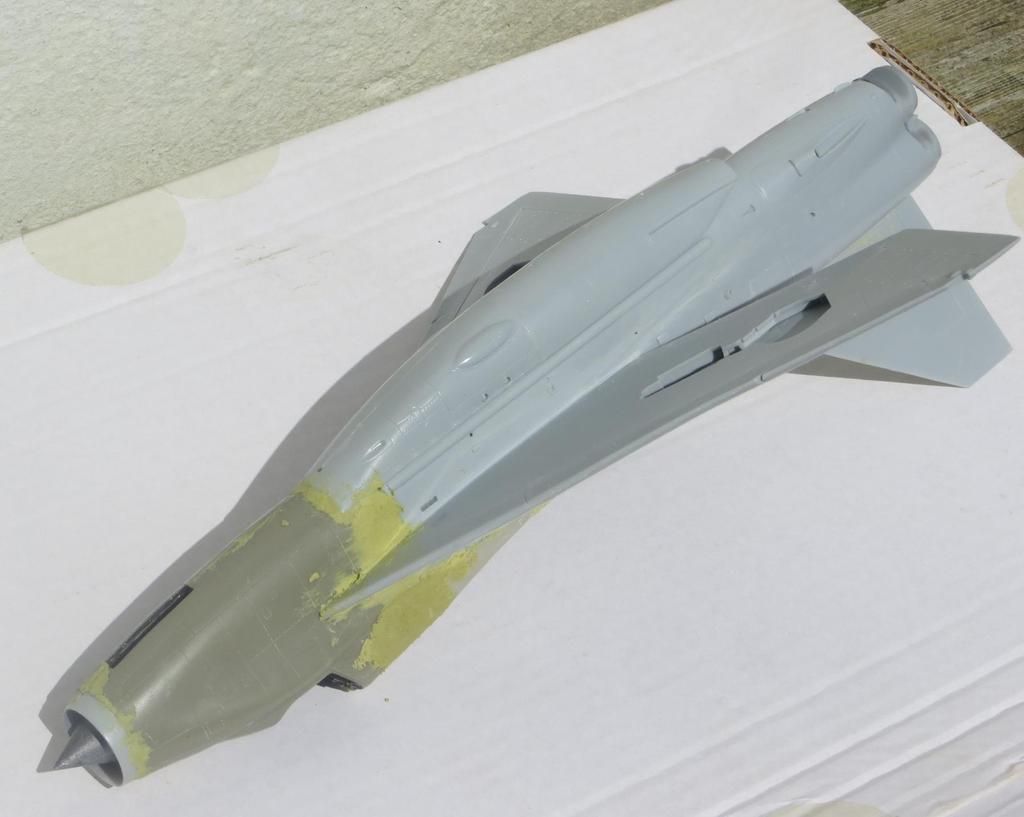

I think we get used to the idea that resincast conversions are pretty good. Not so here. Due to the warping on the thin fwd fuselage halves, the fit isn't great and a deal of milliput is needed to properly fair the replacement parts in. I'd rather have seen a single piece casting which would have been far less problematical.

Sanding, sanding, sanding....
Offline Profile Quote Post Goto Top

Mark M
Member Avatar
Hawk T1
or buy the sword kit, lol

it will be worth it in the end
Offline Profile Quote Post Goto Top

blainecole
airbrush beginner
You've done a great job on the crew and weapons. Best of luck with the rest.
Offline Profile Quote Post Goto Top

DLG Dave
Lt Dave 'Wraith' Carter
Posted Image

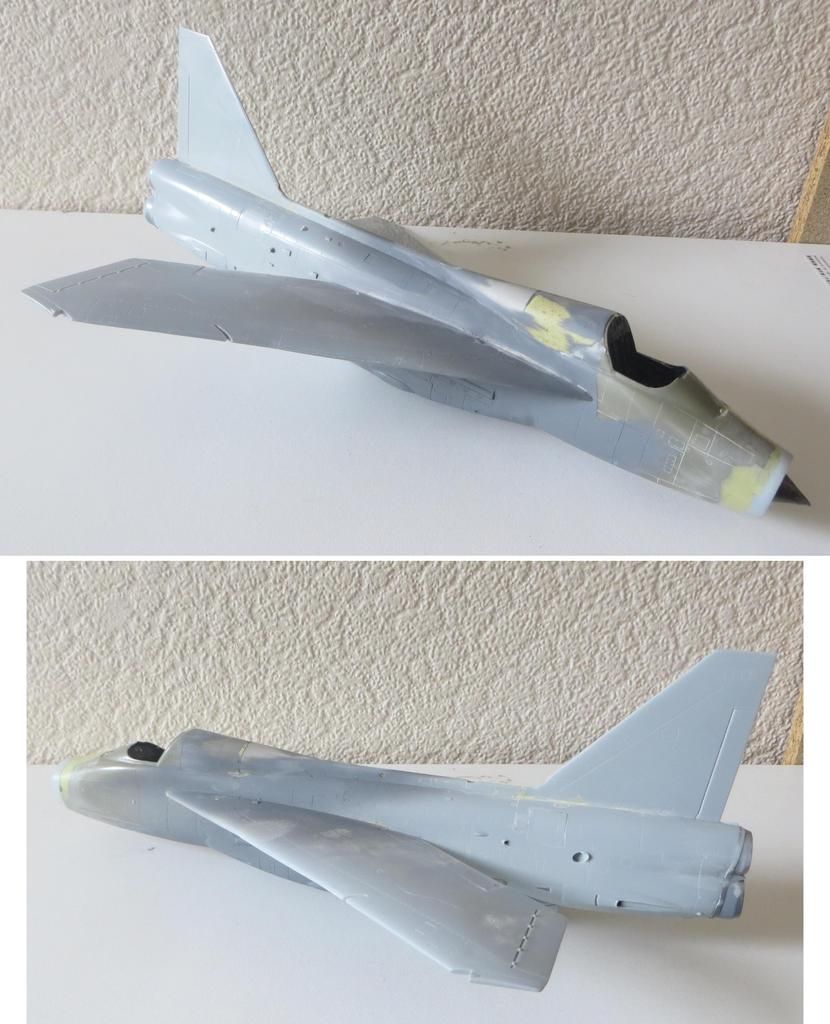

Just some small cleanup areas to do, and a couple of lumps and bumps to add, then painting can commence.
Offline Profile Quote Post Goto Top

DLG Dave
Lt Dave 'Wraith' Carter
Posted Image

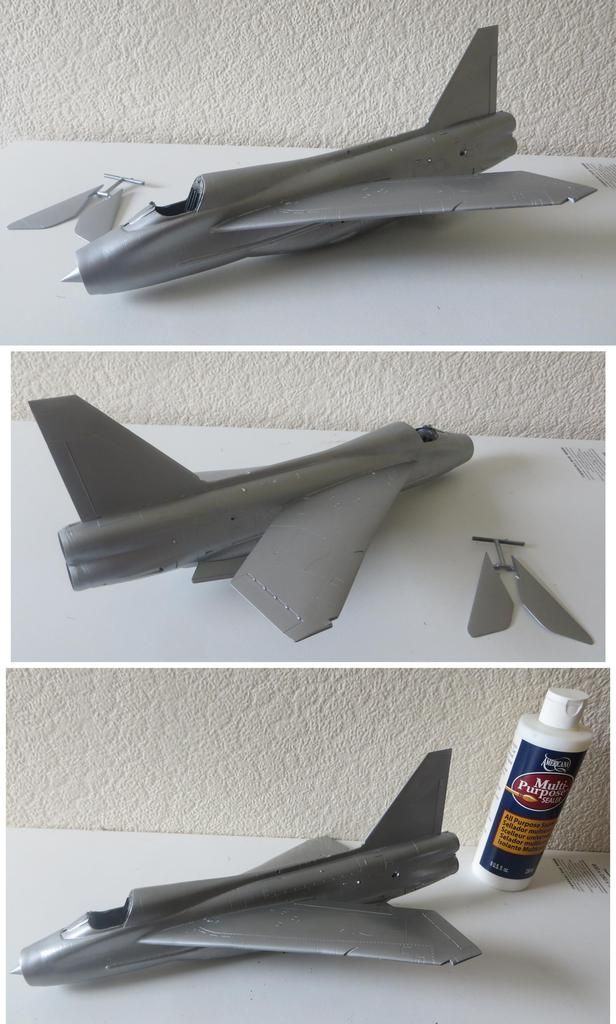

Ready to start adding the decals now.

Undercoated the NM with gloss black and added two layers of Humbrol Metalcote polished aluminium via aerosol. Let that bake under the recent sunshine for four days and then polished the paint. It helps the polish if you add a tiny amount of a polishing compound to the polishing cloth. I used Tamiya polishing compound but toothpaste or Brasso might be useable. As with all things, practice elsewhere before trying it on a finished model. But it does seem to bring the Metalcote polish out successfully.

I paintbrushed over that with a pre-prepared mix of Tamiya gloss varnish with a small amount of transparent blue and their transparent 'Smoke' added. To that I add roughly 25% of the Sealer you see in the bottom pic. When drying it effectively turns the varnish into a skin which shrinks over the model and gives a very smooth finish. That sealer can also be used with acrylics generally and alleviates some problems which can be encountered when brushing with them.
Offline Profile Quote Post Goto Top

Olde Farte
Member Avatar
Lt. Derek 'Smurfy' Reeve
Sweet.
Offline Profile Quote Post Goto Top

Jonesy113
Member Avatar
Nick 'Token' Jones
:like
Offline Profile Quote Post Goto Top

DLG Dave
Lt Dave 'Wraith' Carter
Posted Image

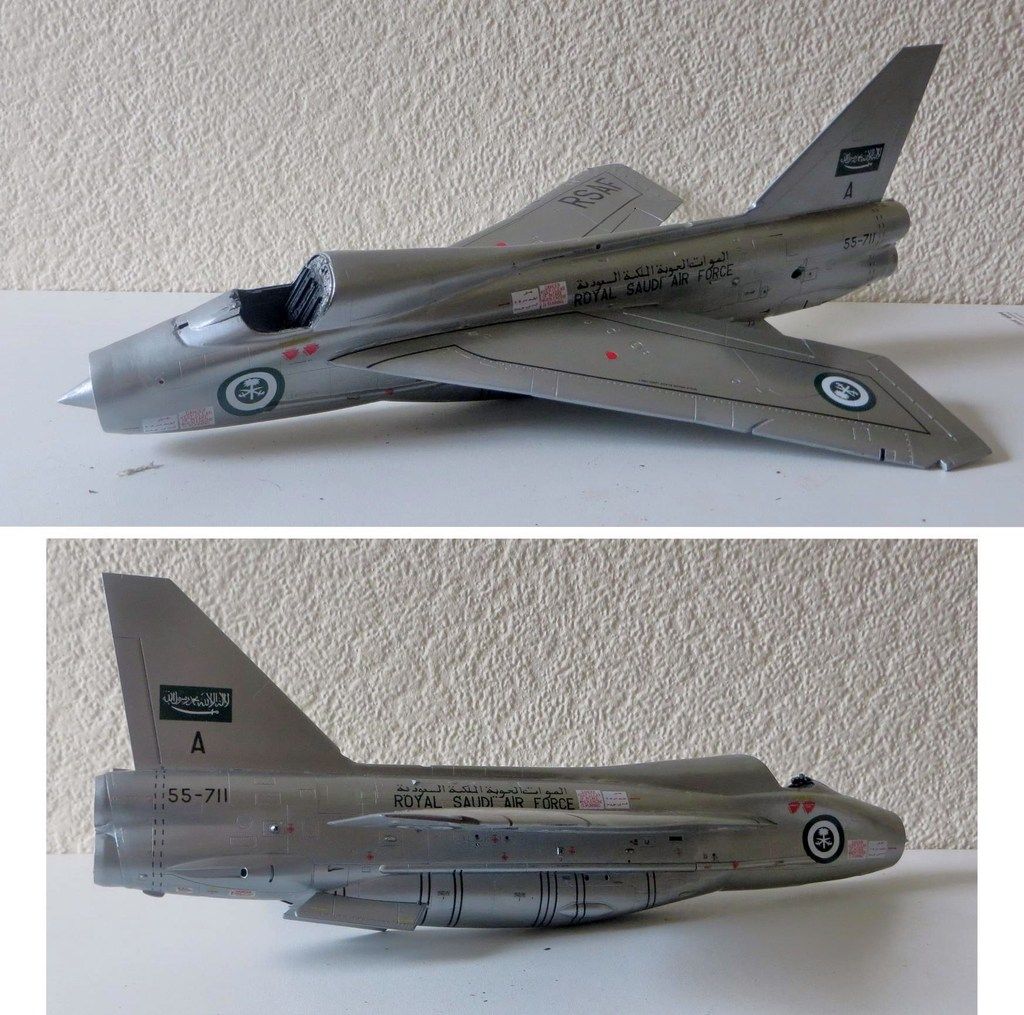

Decals finished apart from a very small number of stencils which need to be added to parts which aren't yet on the model itself. Should be finished this one in a few days time.
Offline Profile Quote Post Goto Top

Olde Farte
Member Avatar
Lt. Derek 'Smurfy' Reeve
She is looking good, nice work Dave.
Offline Profile Quote Post Goto Top
